Key Specifications/ Special Features:
Electronic paper finds extensive applications. Nowadays, many products are transitioning from traditional paper to electronic paper for their price tags. Electronic paper can display a wider array of images and can also be integrated into management systems, significantly enhancing the standardization of product management and employee productivity. It is a wise choice.
Our company offers a range of electronic paper options. Please specify your requirements, and we will provide you with professional and cost-effective services.
1.54′ ′ E-Ink Display Module EPD Low Power Consumption Epaper Display
A:Basic Info
Optimum Resolution 200*200 Product Type Epaper Display, Epaper Module Size(mm) 31.8(H)X37.32(V)X1.0(D) Active Area(mm) 27.0(H)X27.0(V) Pixel Configuration Square Transport Package Plastic Plate Production Capacity 300K/M |

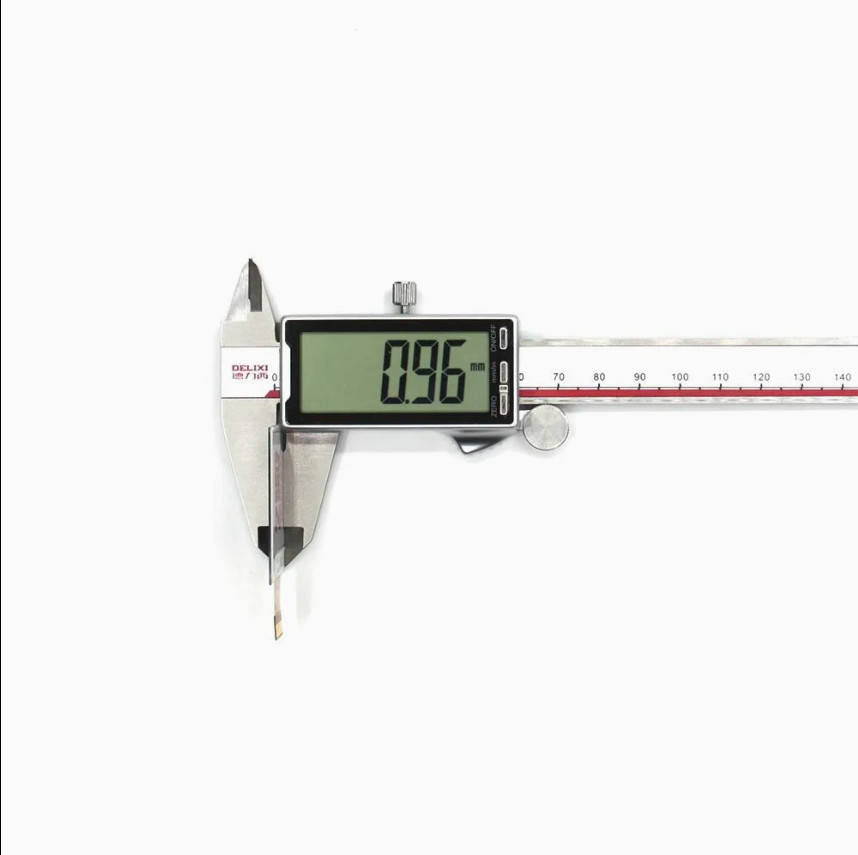

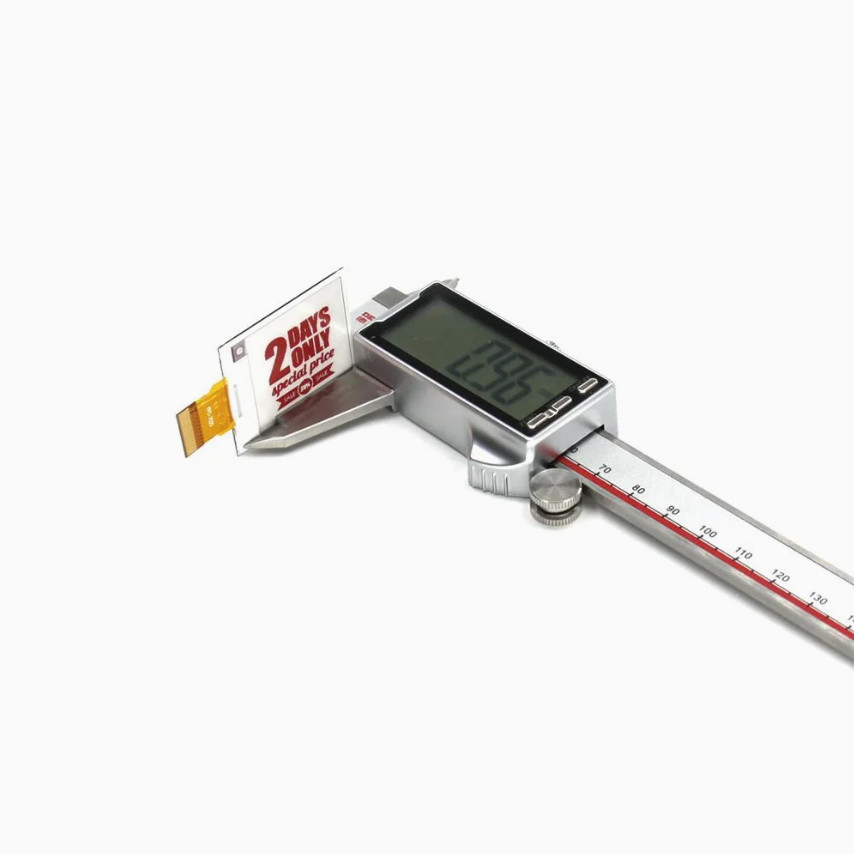

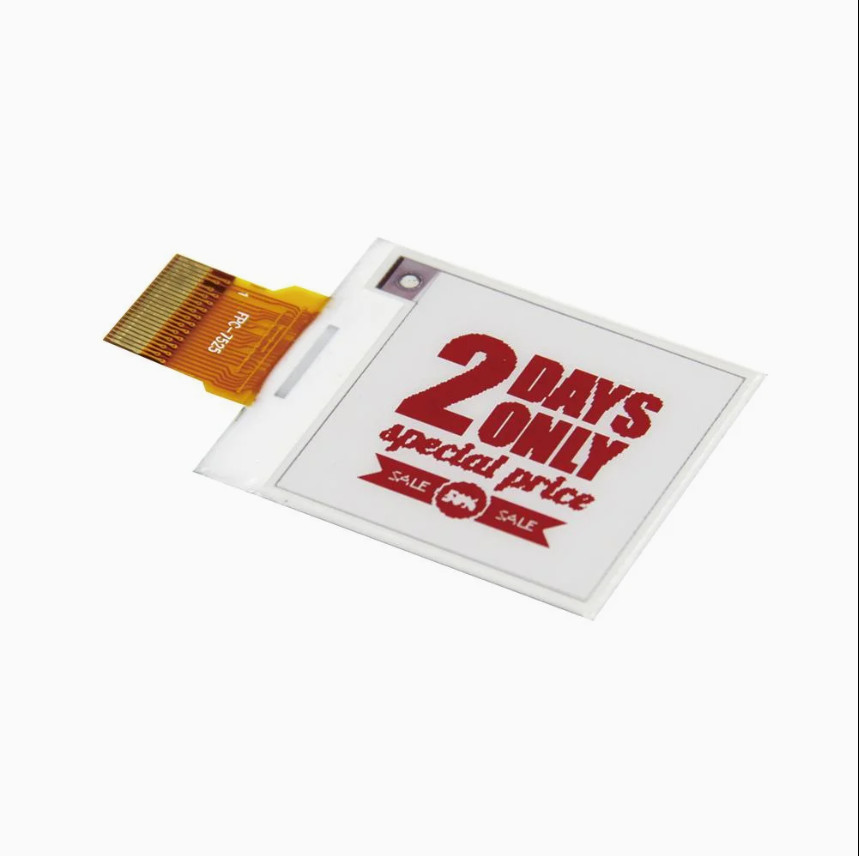

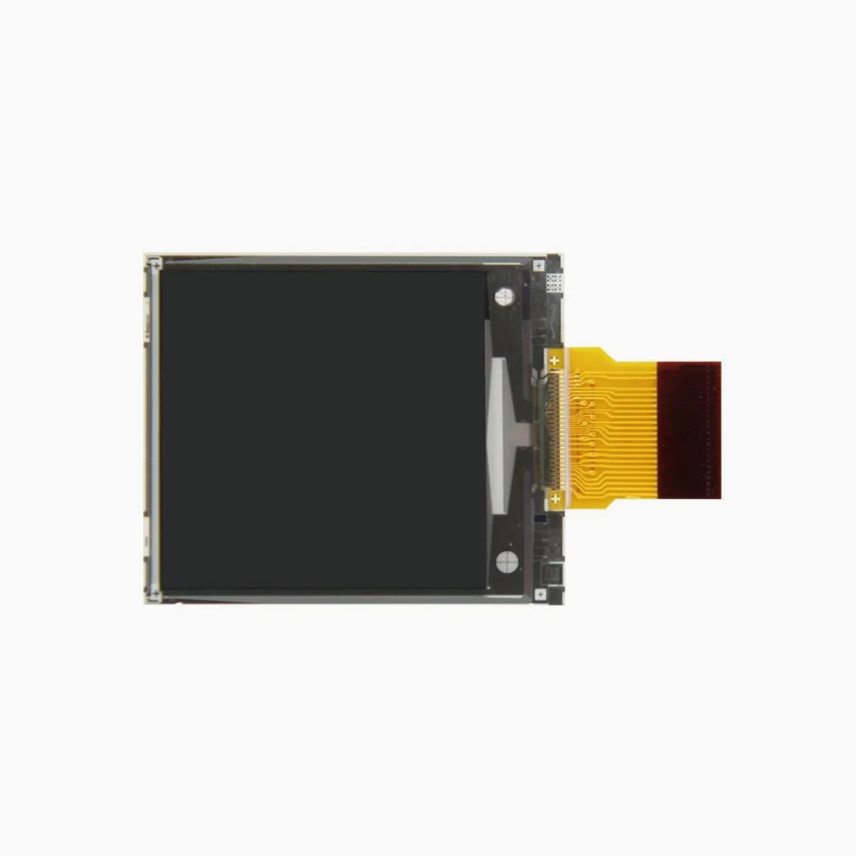

B: Product Picture

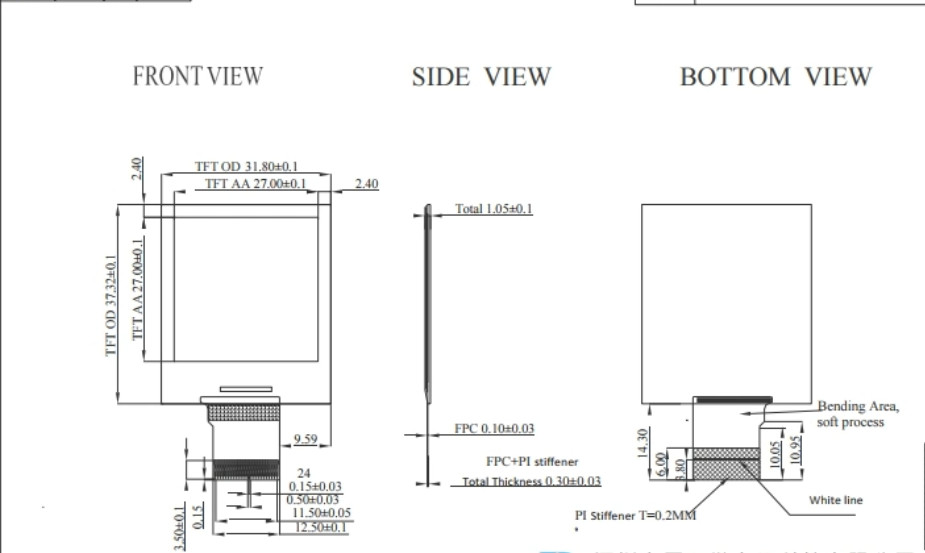

C.drawing
D: E-paper Product Knowledge
- E- paper Advantages:
- paper-like reading experience
- ultra wide view angle
- ultra low power consumption
- ultra thin
- eye protection
- environmental protection
- without backlight
E-paper Disadvantages
- suitable to lower temperature
- size is limited in the market
- color is limited and can't make full color
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
Annual Production
Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
LCD Producton
Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit:thousands of
logarithms/Day |
LCM Producton
Capacity | 70 | 150 | 300 | 450 | 450 | Unit:Thousand
piece/Day |
Backlight Producton
Capacity | 100 | 200 | 300 | 500 | 500 | Unit:Thousand
piece/Day |
OLED Producton
Capacity | 10 | 20 | 30 | 40 | 50 | Unit:Thousand
piece/Day |
G: Product Application
1.supermarket retail lable
2.e-book reading
3.financial field
4. smart healthcare
5. smart transportation and smart home
H: E-paper display Characteristics
1. Reflective Display
2. Bi-stable
3. Low Power Consumption
4. High Contrast and Readability
5. Flexible and Lightweight
6. Limited Color Capabilities
7. Slow Refresh Rate
I:Are there any drawbacks to using e-paper displays
1.Limited Color Capabilities
2.Slow Refresh Rate:
3.Limited Viewing Angles:
4.Limited Brightness and Contrast
5.Slower Image Updates
6.Limited Availability of Larger Sizes
7.Susceptibility to Environmental Factors
