ESHXZ60036-RF is 5.99 inch LCD display, 720*1480 resolution, MIPI interface, IPS full viewing angle
A. LCM Technical Parameters
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 5.99”TFT | -- |
| Dot arrangement | 720(RGB)×1480 | dots |
| Color filter array | RGB vertical stripe | -- |
| Display mode | IPS/ Transmission/ Normally White | - |
| Eyes Viewing Direction | 80/80/80/80 | -- |
| Driver IC | ST7703 | -- |
| Module size | 70.5(W)×145.2(H)×2.25(T) | mm |
| Active area | 66.74(W)×137.2(H) | mm |
| Interface | MIPI4 | -- |
| Operating temperature | -20~ +70 | °C |
| Storage temperature | -30~ +80 | °C |
| Back Light | White LED*16 | -- |

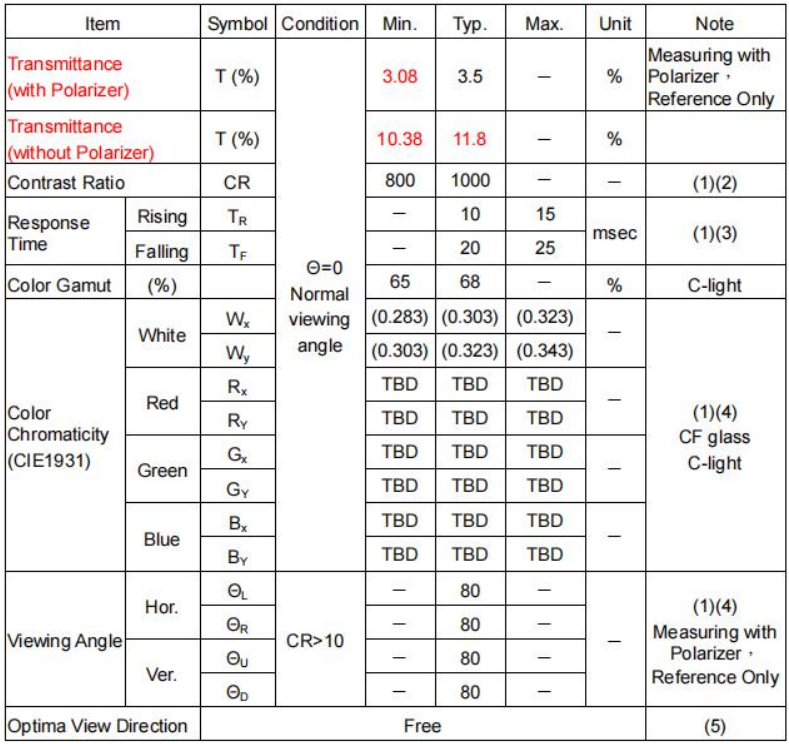

B. LCM Optical Characteristics

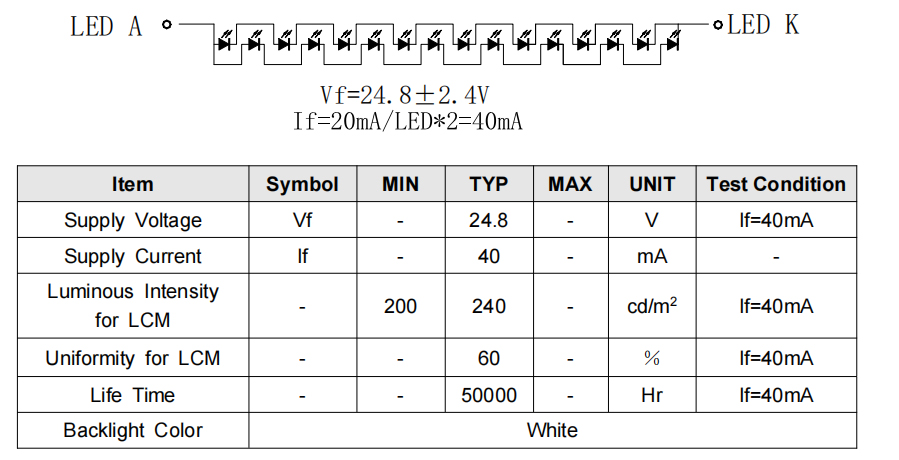

C. LED Backlight Characteristics

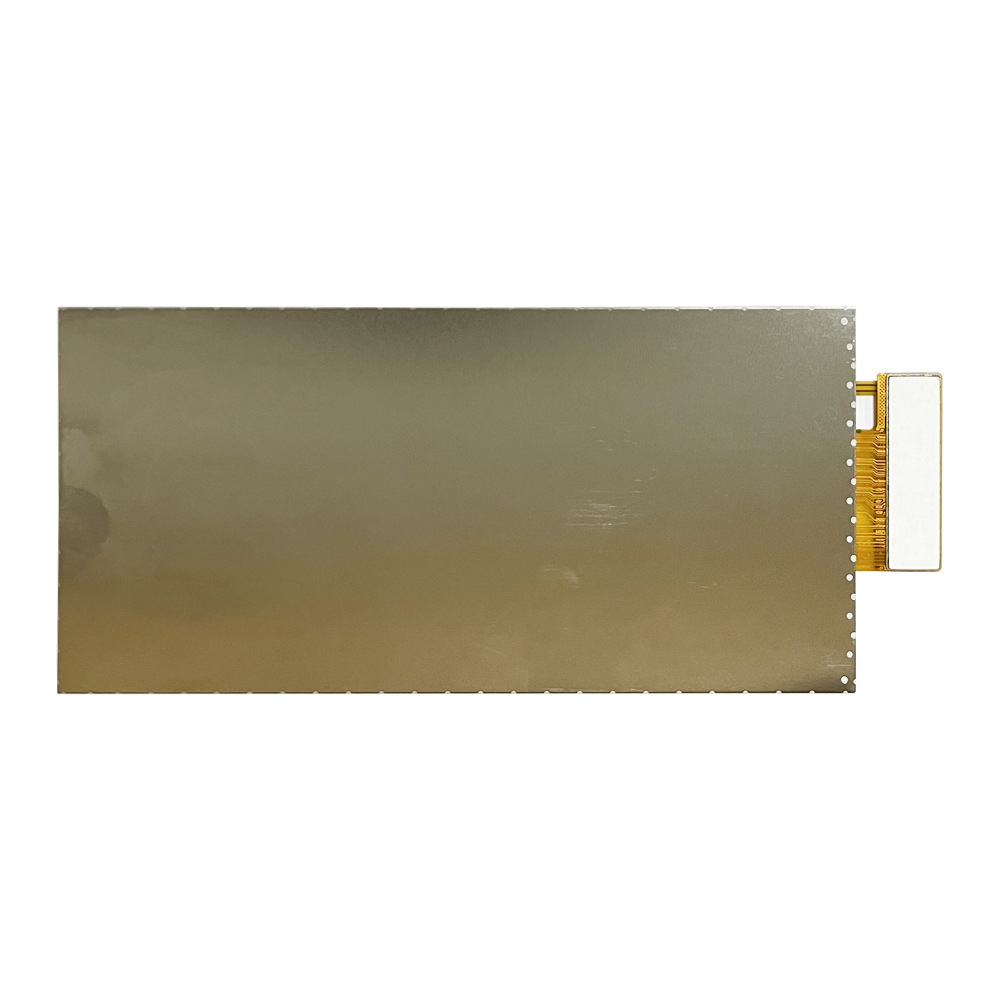

D. Product Picture

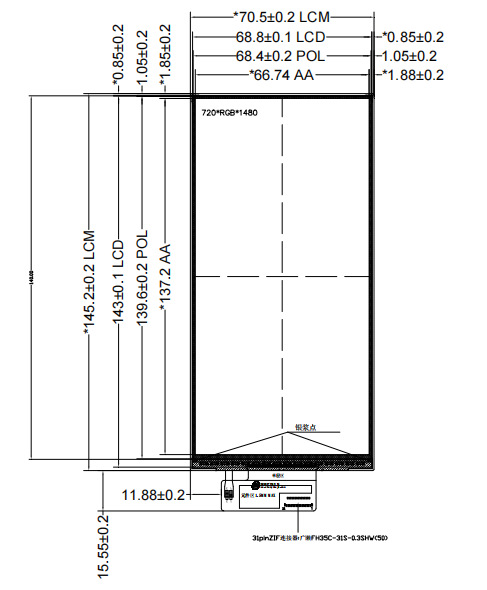

E. Drawing
F: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
