ESHX084SDHG01-02 is 8.4 inch TFT display module, resolution is 800X600, LVDS interface, brightness is 500 c/d, view angle is 12:00
A:Product Parameter
| Part No: | ESHX084SDHG01-02 | unit |
| Size 尺寸 | 8.4 | inches |
| Resolution 分辨率 | 800*600 | |
| Active Area 显示区域 | 170.4*127.8 | mm |
| Outline dimension 外观尺寸 | 203*142.5*5.7 | mm |
| Color Depth 颜色 | 262k/16.7 M colors | |
| Display Mode 显示模式 | Normally White | |
| Surface treatment 表面处理 | AG | |
| Interface 接口 | LVDS 20PIN | |
| View Angles | 60/70/70/70 | |
| Viewing Direction | 12 o’clock | |
| Brightness 亮度 | 280min/350typ | Nits |
| Operating temperature 工作温度 | -20 ... +70 | °C |
| Storage temperature 储存温度 | -30 ... +80 | °C |
| Contrast ratio 对比度 | 400min/500typ | |

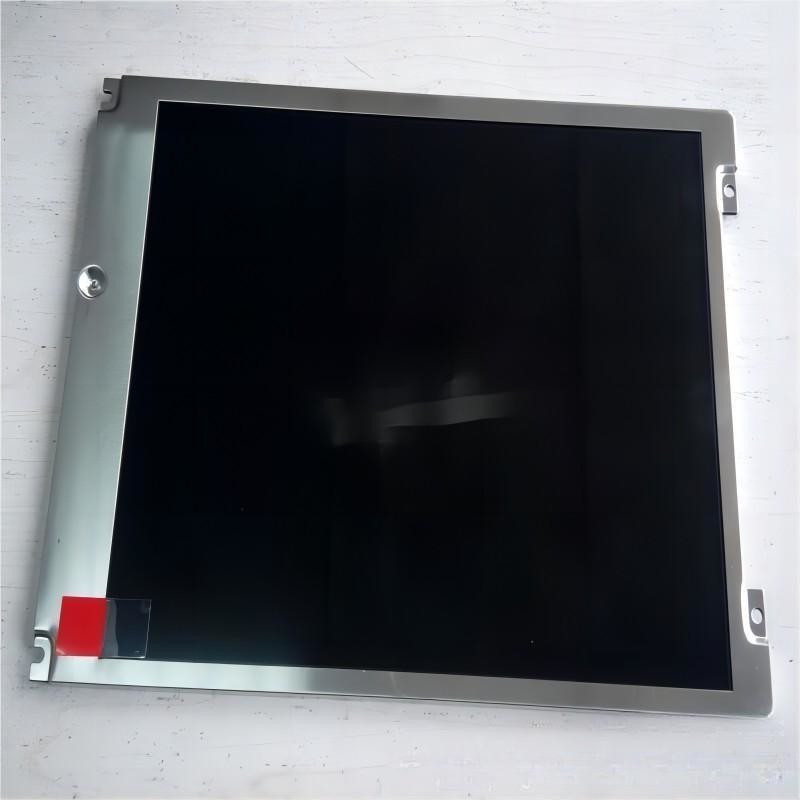

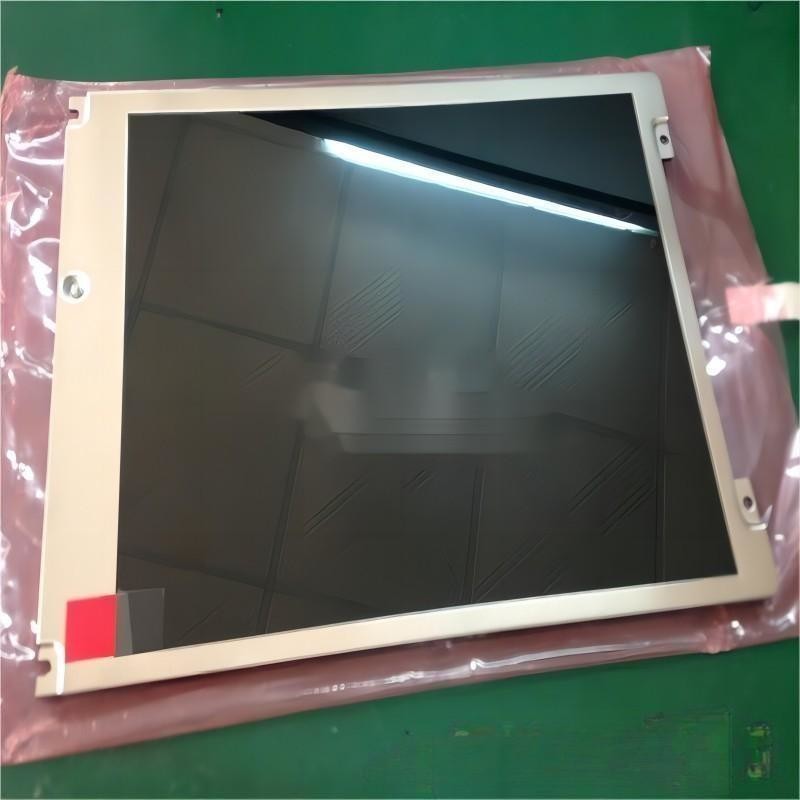

B:Product Picture
