This 0.96 inch 80x160 resolution LCD TFT is a Premium display with Serial interface, full view TFT display. This LCD monitor has a built-in ST7735S controller, hot-bar soldering connection, and is RoHS compliant. Customers can customize different connections and cover glass.
A:Product Parameter
| Part No: | ESHX096H002-V1 |
| Panel size | 0.96''Diagonal | 80x3x160 Pixels |
| LCD type | IPS |
| Module Size | 14.04mm x 27.94mm x 1.53mm |
| Display Area | 10.8mm x 21.7mm |
| Luminance | 400 TYP |
| View angle | All View |
| Module Driver IC | ST7735S |
| Power Supply Voltage | 2.8V |
| Interface Pins | SPI |
| Connection Type | 13 pin FPC |
| Luminance | 260 (TYP) |
| Operating Temp | -20~+70 |
| Storage Temp | -30~+80 |
| with or without TP | No Touch |

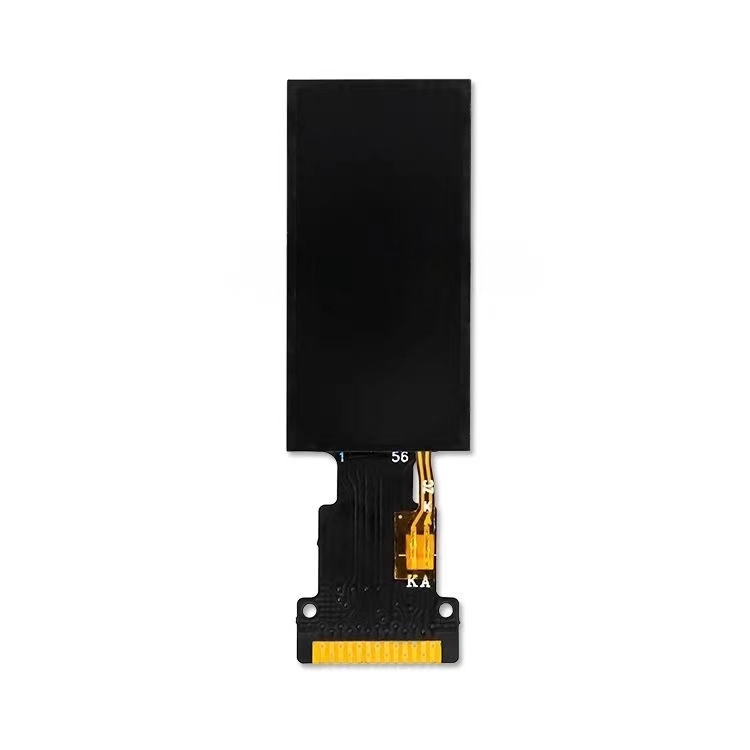

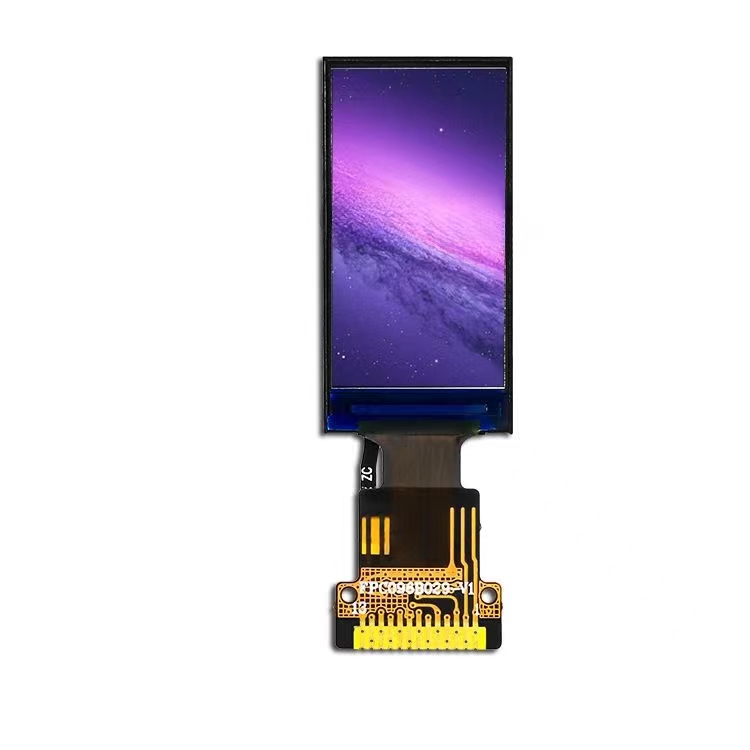

B:Product Picture

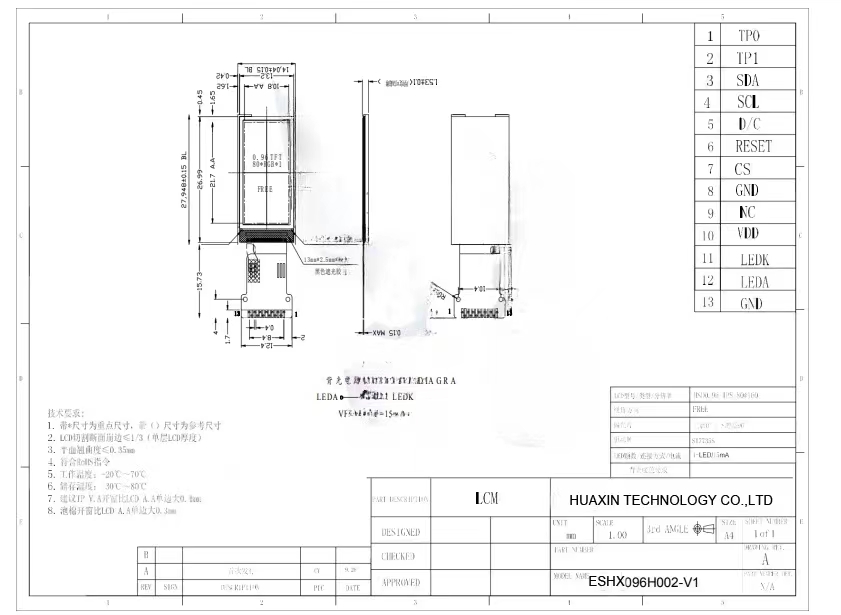

C: Drawing
