ESHX145RAN10A is 1.45 inch round TFT display , 412x412 Resolution, 24 pins QSPI interface, brightness is 450 cd/M2 TFT lcd and lcd Module Driver IC is SPD2010 and applied for watch/bracelet
A: Product Parameter
| ITEM | specification |
| Model Number | ESHX145RAN10A |
| size | 1.45 inch ROUND TFT |
| LCD Type | IPS |
| Number of pixels | 412X412 |
| Active area | 36.96X26.96MM |
| OutlineSize(W*H*T) | 39.36X41.53X1.63 |
| Viewing direction | free view angle |
| LCM Driver IC | SPD2010 |
| LCM interface | QSPI interface |
| PIN number | 24pins |
| LED number | 6pcs |
| operating temperature | -20~70 |
| storage temperature | -30 to +80 |
| Luminance | 450c/d |

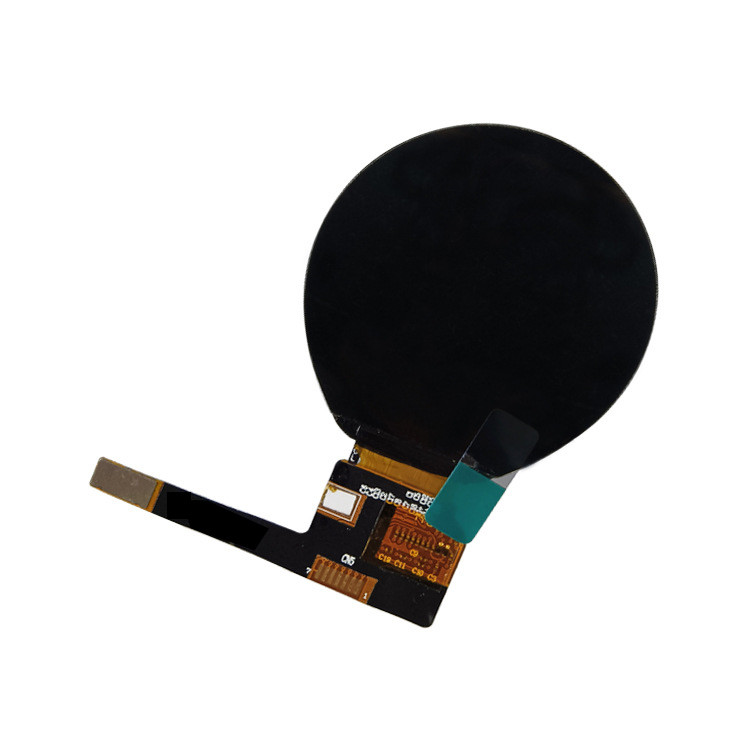

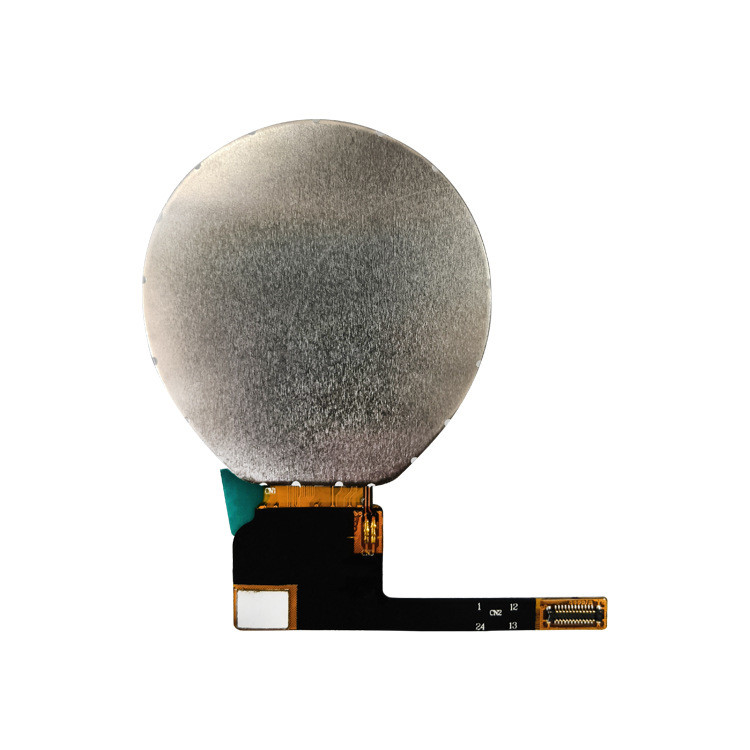

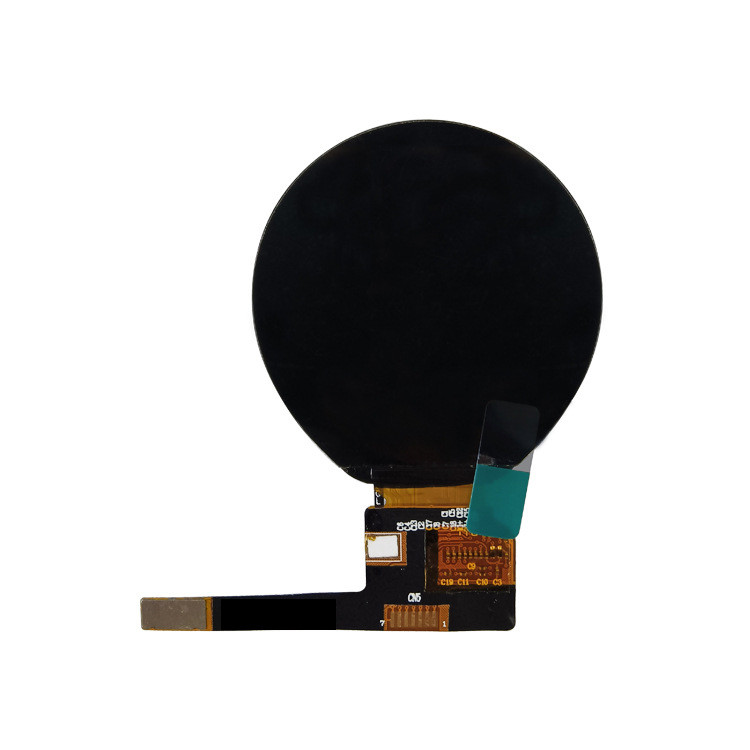

B:Product Picture

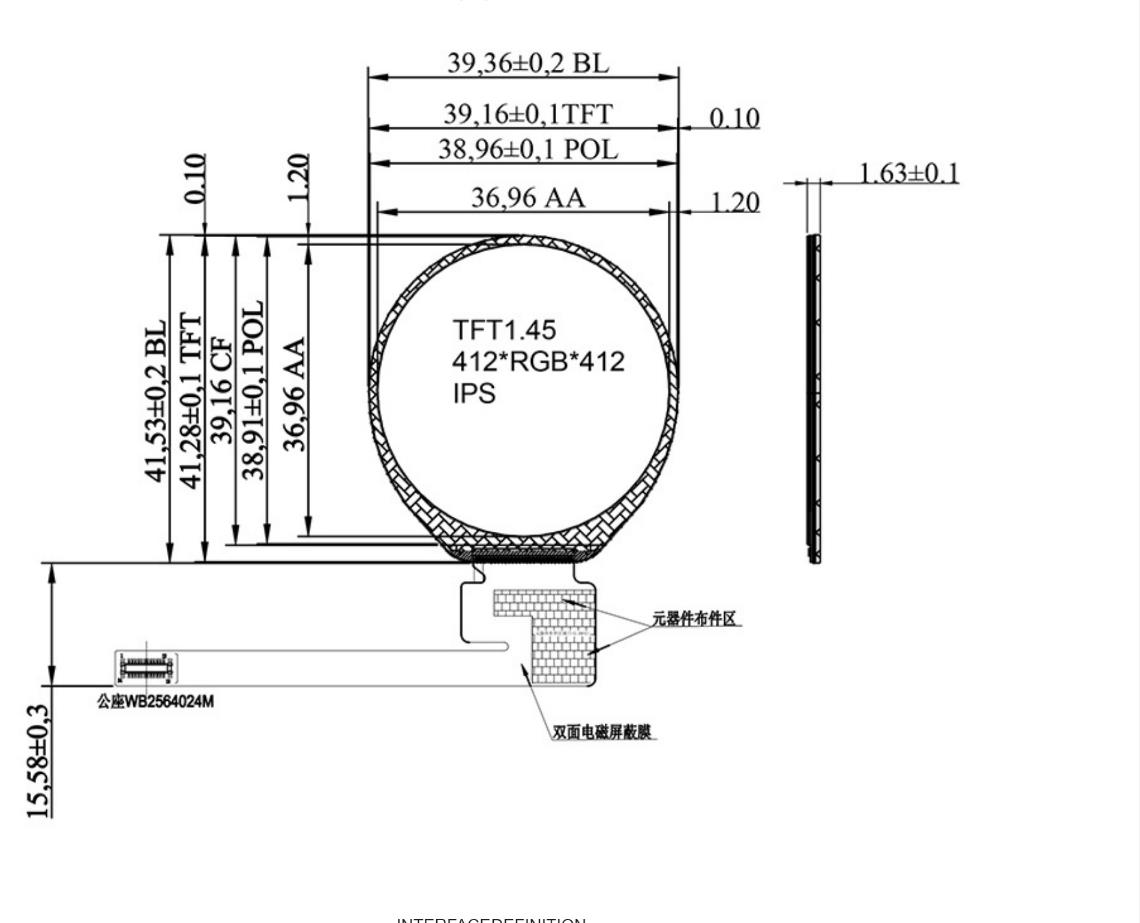

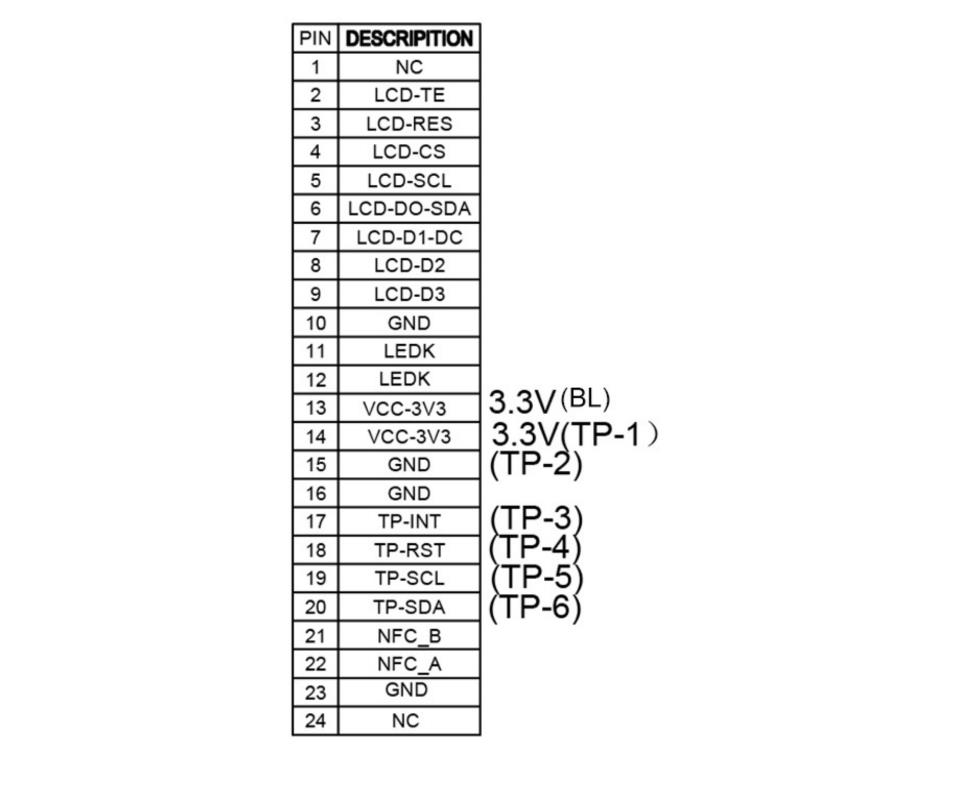

C: Drawing
